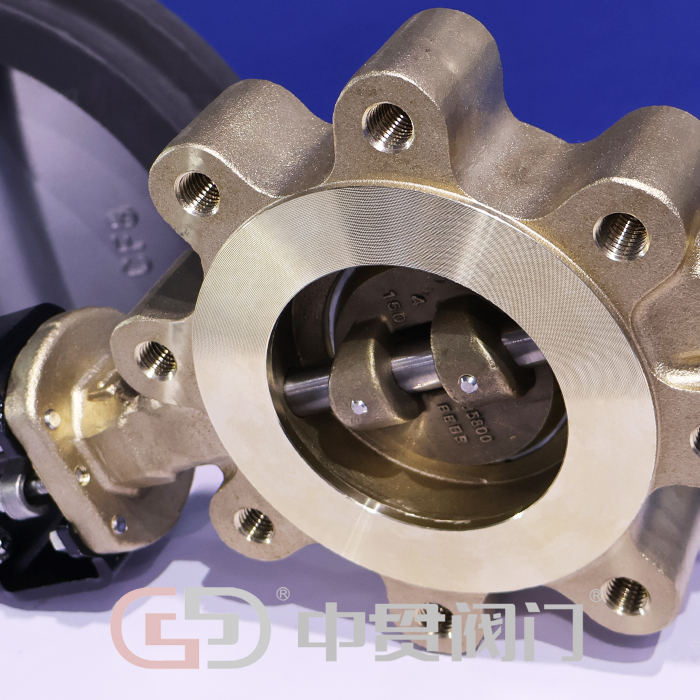

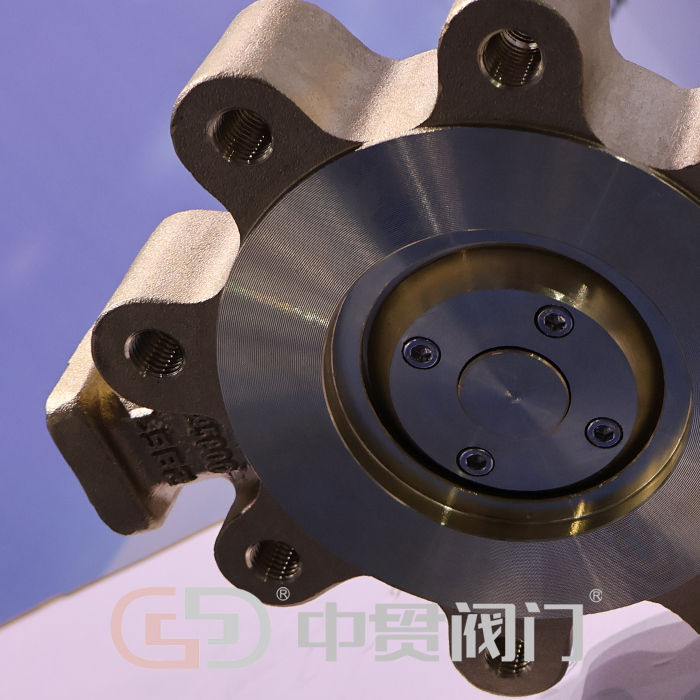

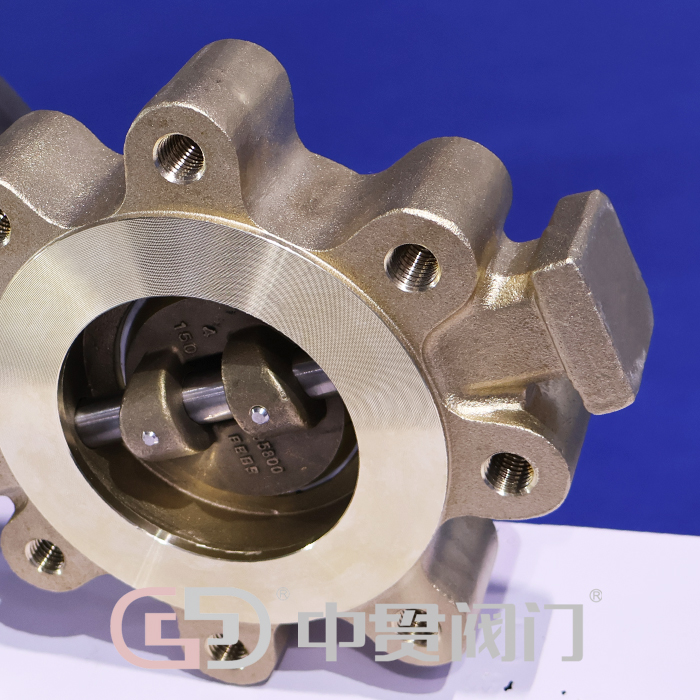

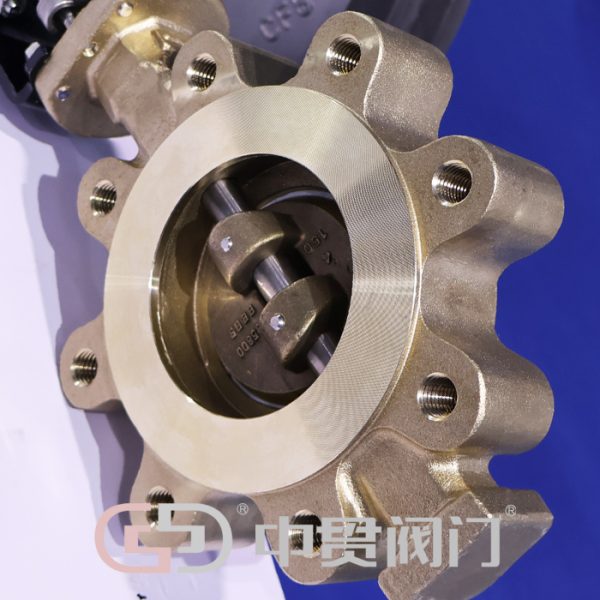

API Standard C95800 Lugged Triple Offset Butterfly Valve

Metal seat triple offset butterfly valves are renowned for their durability and high performance in demanding applications. Unlike traditional butterfly valves that use elastomers or soft seats, metal seat three offset butterfly valves use metal seats, which can provide excellent sealing performance even at high temperatures and pressures. These valves are commonly used in industries such as oil and gas, chemical processing, and power generation, where reliable performance and durability are crucial.

Connection Types of Triple Offset Butterfly Valve

Triple offset butterfly valves typically have several connection types for installation, depending on the specific application and requirements. Here are some common connection types:

  1. Flanged Connection: This is the most common type where the valve has flanges on both ends that mate with flanges on the piping system using bolts and nuts. Flanged connections provide a secure and leak-tight joint and allow for easy installation and maintenance.
  2. Wafer Connection: In this type, the valve is sandwiched between two pipe flanges using bolts and nuts. Wafer connections are lighter and more compact than flanged connections, suitable for applications where space is limited.
  3. Lug Connection: Lug-style valves have threaded inserts or lugs on the valve body that allow it to be bolted directly to the piping system without using additional flanges. This type of connection provides a secure joint and is commonly used in applications where the valve needs to be removed without disturbing the pipeline.
  4. Double Flanged Connection: Some triple offset butterfly valves are designed with flanges on both the inlet and outlet sides of the valve, similar to flanged connection but with flanges on both ends. This design provides flexibility in installation and maintenance.
  5. Butt Weld Connection: Valves with butt weld ends are welded directly into the pipeline, providing a smooth and continuous flow path. This type of connection is suitable for high-pressure and high-temperature applications where a welded joint is preferred for its strength and reliability.

The choice of connection type depends on factors such as the operating conditions, pressure ratings, space constraints, and installation requirements of the specific application.

Features of Lugged Type of Triple Offset Butterfly Valve

The lugged structure of a triple offset butterfly valve offers several features and advantages that make it suitable for various industrial applications:

  1. Installation Flexibility: Lugged valves can be installed in-line by bolting them directly to the pipeline flanges without needing additional valve supports. This makes installation and removal easier compared to fully flanged valves.
  2. Bidirectional Sealing: Lugged valves typically provide bidirectional sealing capabilities, meaning they can effectively control flow in both directions. This feature is crucial in applications where fluid flow direction may vary.
  3. Pressure Rating: Lugged triple offset butterfly valves can handle high-pressure applications due to their robust design and secure bolted connections. They are suitable for both high and low-pressure systems.
  4. Versatility: They can be used in various industries such as oil and gas, petrochemical, water treatment, and power generation. The lugged structure provides versatility in application and installation.
  5. Maintenance and Repair: Lugged valves allow for easier maintenance and repair because they can be removed from the pipeline without disturbing the rest of the piping system. This reduces downtime and maintenance costs.
  6. Leak-tight Performance: The lugged design ensures a tight seal between the valve and the pipeline flanges, minimizing leakage and enhancing operational efficiency.
  7. Corrosion Resistance: Triple offset butterfly valves with lugged structure are often constructed from materials that offer excellent corrosion resistance, ensuring long-term reliability and durability in harsh environments.

Overall, the lugged structure of triple offset butterfly valves combines ease of installation with robust performance, making them a preferred choice for critical applications requiring reliable flow control and minimal maintenance.

Application of Triple Offset Butterfly Valves

Triple offset butterfly valves find application in a wide range of industries and processes where reliable and efficient flow control is essential. Some common applications include:

  1. Oil and Gas Industry: Used in upstream, midstream, and downstream applications for isolation and control of various fluids including crude oil, natural gas, and refined products. They are suitable for high-pressure and high-temperature environments.
  2. Petrochemical Industry: Used for handling aggressive and corrosive fluids such as acids, solvents, and chemicals. Triple offset butterfly valves offer excellent resistance to corrosion and erosion.
  3. Power Generation: Used in power plants for isolation and control of steam, water, and cooling fluids. They are capable of handling high pressures and temperatures typical in power generation processes.
  4. Water and Wastewater Treatment: Used in municipal and industrial water treatment plants for controlling water flow, including potable water, wastewater, and slurry handling.
  5. Mining and Metals Industry: Used in mining operations for handling slurries and abrasive materials. The triple offset design minimizes wear and ensures longer service life in abrasive environments.
  6. Food and Beverage Industry: Used for controlling flow in food processing and beverage production, where hygiene and cleanliness are critical. They are designed to meet sanitary standards and regulations.
  7. HVAC and Building Services: Used in heating, ventilation, and air conditioning systems for regulating flow of air and water. They provide reliable performance and energy efficiency in HVAC applications.
  8. Marine and Shipbuilding: Used in marine applications for seawater intake and discharge, ballast systems, and general shipboard services. They offer compact design and corrosion resistance suitable for maritime environments.
  9. Pharmaceutical and Biotechnology: Used in pharmaceutical manufacturing for controlling flow of sterile fluids and gases. They meet stringent hygiene and cleanliness requirements of pharmaceutical processes.
  10. Automotive and Manufacturing: Used in manufacturing processes for controlling flow of fluids and gases in various industrial applications, including automotive production lines.

Triple offset butterfly valves are chosen for these applications due to their reliable sealing performance, ability to handle high pressures and temperatures, resistance to wear and corrosion, and ease of operation and maintenance. Their versatility makes them suitable for a wide range of demanding industrial processes across different sectors.
